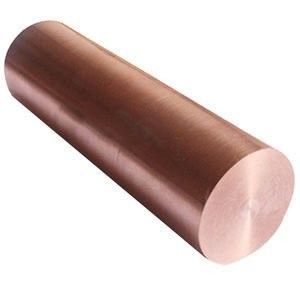

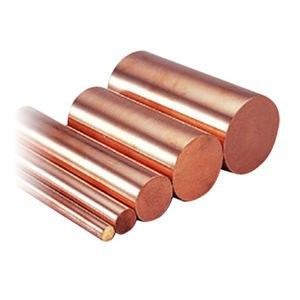

Name: CuCo1Ni1Be Beryllium Copper Round Bar CW103C 3mm Copper Rod Cobalt Nickel
Brand: Wuxi Jinnuo copper Co.,Ltd
SKU: 0.1mm-900mm
Availability: InStock

Home > products > Solid Copper Rod >

CuCo1Ni1Be Beryllium Copper Round Bar CW103C 3mm Copper Rod Cobalt Nickel

CuCo1Ni1Be Copper Round Bar

CW103C Copper Round Bar

Cobalt Nickel 3mm copper rod

Place of Origin:

china

Brand Name:

jinshunlai

Certification:

IOS

Model Number:

0.1mm-900mm

Document:

Product Brochure PDF

Request A Quote

CuCo1Ni1Be Beryllium Copper Round Bar CW103C 3mm Copper Rod Cobalt Nickel

Product Details

Color:

Red Yellow

Payment & Shipping Terms

Minimum Order Quantity

1kg

Price

Delivery Time

5days

Payment Terms

L/C, T/T , Western Union,D/P

Supply Ability

90000tons

RELATED PRODUCTS

+86-17763564398

sales01@shuangheyisteel.com

Contact Now

Product Description

CUCO1NI1BE BERYLLIUM COPPER ROD-CW103C Cobalt Nickel Beryllium Copper Rod

Product Details:

Product Material	CuCo1Ni1Be
End Product	Round rod, bar
Europe Standard	CW103C, DIN 2.1285
Chemical Composition	Be:0.40-0.70%, Co: 0.80-1.30%, Ni: 0.80-1.30%, Cu: Balance Note: Copper plus additions equal 99.5% minimum
State for rod	A(TB00),H(TD04),AT(TF00),HT(TH04)
Other available products	plates, flat bar
State for plate	AT(TF00),HT(TH04)

Introduction of CUCO1NI1BE material:

CuCo1Ni1Be-CW103C(DIN.2.1285), Cobalt Nickel Beryllium Copper, contains low Cobalt, Nickel and Beryllium.

After hot forging and heat treatment process, the hardness, electrical conductivity and electrical conductivity of this material are also significantly improved.

By changing the heat treatment conditions, different electrical conductivity and mechanical combinations can be obtained;

CuCo1Ni1Be still has good strength and mechanical properties, and the electrical conductivity is between In the range of 45-60% copper, the ultimate tensile and mechanical properties are close to 140 ksi and RB 100, respectively, and all of its properties are comparable to CuCo2Be-C17500 and CuNi2Be-C17510, respectively.

Typical Physical Properties of CUCO1NI1BE material:

Density(g/cm3)	8.83
Density before age hardening (g/cm3)	8.75
Modulus of elasticity (kg/mm2 (103))	14.1
Coefficient of thermal expansion (20 °C to 200 °C m/m/°C)	17 x 10-6
Thermal conductivity	209 W/m • at 20 C
Normal Melting range (°C)	1000-1070

Note:
1). the units are based upon Metric.
2). the typical physical properties apply to age hardened products.

Our Normal Material Grades and Available End Products:

C17200	round rod, bar, plate, wire, strip, ribbon, foil, tube, blok
C17300	round rod, bar
C17510	round rod, bar, flat bar, plate
C17500	round rod, bar, plate
CuCo1Ni1Be	round rod, bar, flat bar, palte

Typical Use of CUCO1NI1BE material:

Electrical Industry
Fuse clips	switch components
relay components	connector non-ferrous metal materials
plastic mold tools	butt welding pliers
submerged arc welding contacts
