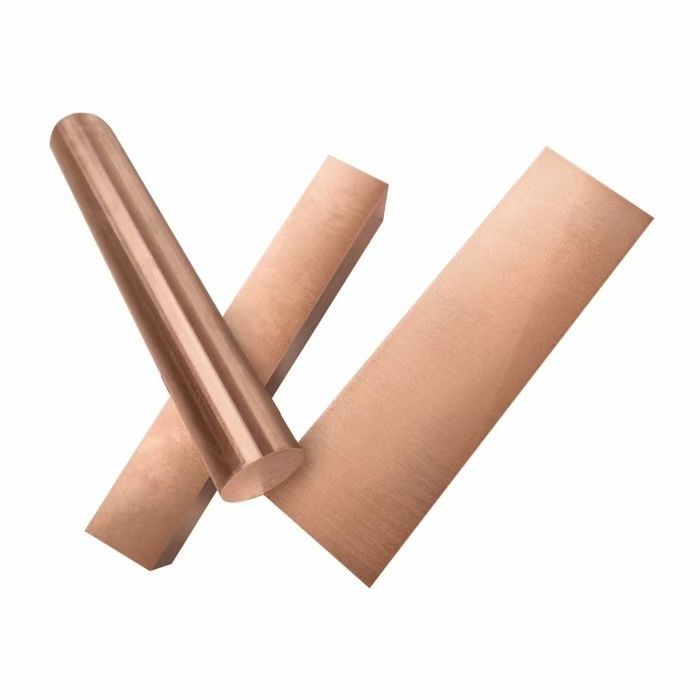

Name: ASTM B196 C17000 Beryllium Copper Rod Pipe Cold Drawn 45mm
Brand: Wuxi Jinnuo copper Co.,Ltd
SKU: 0.1mm-900mm
Availability: InStock

Home > products > Solid Copper Rod >

ASTM B196 C17000 Beryllium Copper Rod Pipe Cold Drawn 45mm

Cold Drawn c17000 beryllium copper

45mm c17000 beryllium copper

C17000 beryllium copper rod

Place of Origin:

china

Brand Name:

jinshunlai

Certification:

IOS，AISI, ASTM, GB, EN

Model Number:

0.1mm-900mm

Document:

Product Brochure PDF

Request A Quote

ASTM B196 C17000 Beryllium Copper Rod Pipe Cold Drawn 45mm

Product Details

Boiling Point:

2567°C

Conductivity:

100%IACS

Density:

8.96g/cm3

Elongation:

30%

Hardness:

HV30-50

Material:

Copper

Melting Point:

1083.4°C

Shape:

Rod

Surface:

Smooth

Tensile Strength:

240N/mm2

Tolerance:

±0.25mm

Payment & Shipping Terms

Minimum Order Quantity

1kg

Price

Delivery Time

5days

Payment Terms

L/C, T/T , Western Union,D/P

Supply Ability

90000ton

RELATED PRODUCTS

+86-17763564398

sales01@shuangheyisteel.com

Contact Now

Product Description

C17000 Rod made by Cold Drawn Size 45mm for structural components by ASTM B196

Product Name: Rod

Grade: C17000

Diameter Range: 6mm~50mm

Length: 2m, 3m, 5m, 6m or as required

State: A(TB00), 1/2H(TB04), H(TD04), AT(TF00), HT(TH04)

Introduction of C17000 Copper Alloy:

UNS C17000 beryllium copper alloys are ductile, heat treatable and can be mill hardened. These alloys are used in applications, which require high strength and good conductivity. The following section will discuss in detail about UNS C17000 beryllium copper alloys.

UNS-Number: C17000

Beryllium(Be): 1.60-1.79

Cobalt + Nickel: 0.20 min

Cobalt + Nickel + Iron: 0.6 max

Lead: 0.02 max

Copper: Balance

Note: Copper plus additions equal 99.5% Min.

Common Standard Specification of Beryllium Copper C17000 Alloy:

Rod: ASTM B 196, SAE J 461, 463

Forgings and Extrusions : ASTM B570

Sheet: ASTM B 194

Typical Physical Properties of Beryllium Copper C17200 Alloy:

Cuberyllium Brand	Density lb/cu.in.	Elastic Modulus	Thermal Expansion Coefficient	Thermal Conductivity Btu/(ft•hr•°F)	Melting Temp.
Cuberyllium Brand	Density lb/cu.in.	106 psi	in/in/°F, 70°F to 400°F	Thermal Conductivity Btu/(ft•hr•°F)	°F
170	0.304	19	9.7 x 10 -6	60	1600-1800

Mechanical Properties of Beryllium Copper C17000 Rods:

Cuberyllium 170 Temper		Tensile Strength	Yield Offset	Elongation	Hardness
Cuberyllium 170 Temper		x 1000 P.S.I.	0.2% offset x 1000 P.S.I.	% in 2 Inches	.020 Gauge and Above
TM00	AM	100 - 110	70 - 95	18 -~30	B 98
TM01	1/4HM	110 - 120	80 - 110	15 ~ 25	C 20 - 26
TM02	1/2HM	120 - 135	95 - 125	12~22	C 24 - 30
TM04	HM	135 - 150	110 - 135	9~20	C 28 - 35
TM05	SHM	150 - 160	125 - 140	9~18	C 31 - 37
TM06	XHM	155 - 175	135 - 165	3~10	C 32 - 38
Hardness Legend B : Rockwell (100 kgf Steel Sphere) C: Rockwell (150 kgf Diamond Cone)
NOTE: The information contained herein are intended for reference and comparison purposes only. They should NOT be used as a basis for design specifications or quality control. It is given without obligation or liability. Contact us for manufacturers' complete material property datasheets.
