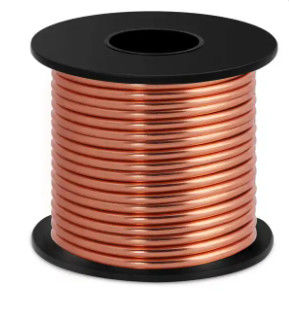

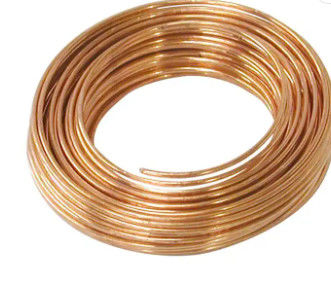

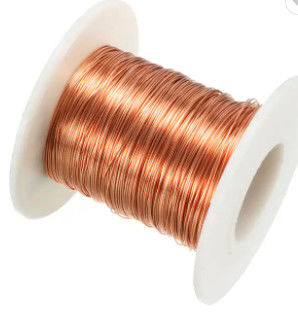

Name: Enamelled Solid Bare Copper Wire 5mm for Conductive
Brand: jinshunlai
SKU: 0.1nm-900nm
Rating: 4.6 (103 reviews)

Home > products > Solid Bare Copper Wire >

Enamelled Solid Bare Copper Wire 5mm for Conductive

Enamelled Solid Bare Copper Wire

5mm Solid Bare Copper Wire

Enamelled 5mm copper wire

Place of Origin:

china

Brand Name:

jinshunlai

Certification:

IOS

Model Number:

0.1nm-900nm

Document:

Product Brochure PDF

Request A Quote

Enamelled Solid Bare Copper Wire 5mm for Conductive

Product Details

AWG:

Application:

Indoor

Color:

Red

Conductor Material:

Copper

Length:

50 Ft.

Shape:

Bare

Voltage Rating:

600V

Color:

Red Yellow

Payment & Shipping Terms

Minimum Order Quantity

1kg

Price

Delivery Time

5day

Payment Terms

L/C, T/T , Western Union,D/P

Supply Ability

90000ton

RELATED PRODUCTS

+86-17763564398

sales01@shuangheyisteel.com

Contact Now

Product Description

Item	C11000 C10100 C10200 Copper Coil / Copper Strip
Standard	JIS H3100-2006 ,ASTM B152M-06,GB/T 2040-2008,ROCT 495-92,EN 1652-98,ASTM B171M-04,
Material	C12300,C1020P,C10100,C10400,C10700,C10200,T2,C1100P,C10500,M1, Cu-ETP,TP1,C1201P,C11000,Cu-DLP,TP2,C1220P,C1221P,C1200,C12200, C14200,C23000P,H62,C2801P,C36500
Thickness	0.01mm~20mm
Width	1mm~2500mm
Length	Random size and customize or as required
Surface	mill,polished,bright,oiled,hair line,brush,mirror,sand blast,or as required
Package	Standard export seaworthy or as customers' requirements
Application	Copper coil can be made to do all sorts of deep drawing and bending stress components,such as manufacturing pins,rivets,gasket,nuts,conduits,the barometer spring,screen,radiator parts, etc
Export to	Ireland,Singapore,Indonesia,Ukraine,Saudi,Arabia,Spain,Canada,USA,Brazil,Thailand, Iraq,Russia,Holland,Turkey,Kuwait,Korea,Argentina,India,Egypt,Oman,Malaysia,Peru,Vietnam,Mexico,etc

Enamelled Solid Bare Copper Wire 5mm For Conductive

Industry-specific attributes

Cu (Min)

≥65%

Alloy Or Not

Non-Alloy

Ultimate Strength (≥ MPa)

315

Other attributes

Place of Origin

Shandong, China

Type

Red Copper Wire

Application

Conductive

Grade

Brass,Copper

Brand Name

jinshunlai

Model Number

C11000 C12200 etc

Processing Service

Bending, Decoiling, Welding, Punching, Cutting

Product name

99.9% Pure Copper Wire, Dead Soft copper wire rod C11000

Key word

12ga Copper Wire

MOQ

1ton

Grade

C12000 C11000 C1100 C1202

PACKAGE

Carton

PRICE TERM

CIF CFR FOB EX-WORK

DELIVERY TIME

7-10 Days

Sample

Avaliable

Diameter

0.3mm-12mm

Color

Red Cppper

Packaging & delivery

Package Type:

Standard Seaworthy Package,inside is kraft paper,water plastic film is in the middle and outside is GI sheet to be covered by steel strip with lock Enamelled Solid Bare Copper Wire 5mm for Conductive 0

Supply Ability

10000 Ton/Tons per Month

Product details

Products Description

Product name	1 lb, 99.9% Pure Copper Wire, Dead Soft copper wire rod C11000 16ga copper wire rod C27000 brass wire
Model Number	C11000, C10200, C12000, C12200 C26800 C27000 C35000 C38000 etc.
MOQ	100kg
Color	Red Cppper
Standard	B465 JISH3250-2006
Payment Term	30%TT Advance + 70% Balance
PRICE TERM	CIF CFR FOB EX-WORK
Coating	Double Layer or customized
Packing	Standard Seaworthy Package
DELIVERY TIME	7-20 Days
Hardness	1/16 hard,1/8 hard,3/8 hard,1/4 hard,1/2hard,full hard,soft,etc
Surface	mill,polished,bright,oiled,hair line,brush,mirror,sand blast,or as required
Application	1. Pancake Coil for ACR, General Engineering Applications 2. LWC Coil for ACR, General Engineering Applications 3. Straight Copper Tubes for ACR and Refrigeration 4. Inner-grooved copper tube for ACR and Refrigeration 5. Copper Pipe for Transportation System of water, gas and oil 6.PE-coated copper tube for water/gas/oil transportation system 7.Semi-finished Copper tube for industrial applications

The insulation or overcoating used on enameled round wire is a type of polymer film (varnish) made from a variety of resins—typically polyester, polyglass, or polyamide—to create a tough, continuous layer of protection for the wire and allow for numerous windings in a coil without producing a short circuit.

Various types of varnishes produce different characteristics or properties, such as: High thermal index (AI) Abrasion resistance (NY) Self-bonding (SB) Self-lubricating (SL) Enameled round wire meets temperature classes between 105 °C and 240 °C, providing a guaranteed service life of 20,000 hours at the rated temperature. Magnet wire comes in a variety of sizes and shapes such as rectangular, square, and round. Enameled wire with a thermoplastic layer to bond the coils together is used to create self-supporting coils, which eliminate the need for a bobbin and accommodate tight spaces in various electronics applications.

The enameled copper wire is made of copper conductor and insulation materials, the insulation materials mainly include UEW, PEW and AIW, the temperature class 130℃, 155℃, 180℃, 200℃, 220℃ and 240℃. The color is natural and beautiful.
