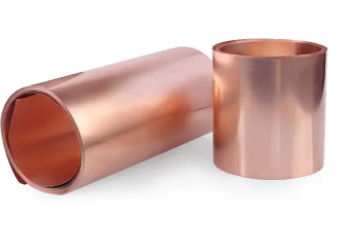

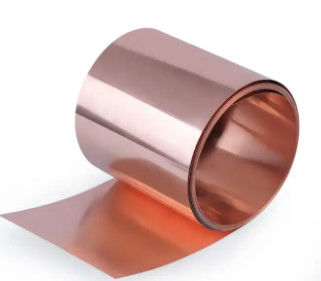

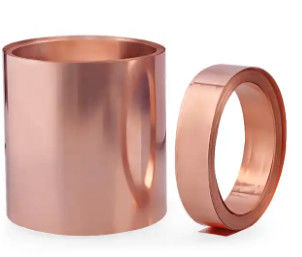

Name: Earthing Beryllium Copper Alloy C17200 strip Brass Surface
Brand: jinshunlai
SKU: 0.1nm-900nm
Rating: 5 (166 reviews)

Home > products > Beryllium Copper Alloy >

Earthing Beryllium Copper Alloy C17200 strip Brass Surface

Earthing beryllium copper alloy c17200

beryllium copper alloy c17200 Strip

Earthing copper alloy strip

Place of Origin:

china

Brand Name:

jinshunlai

Certification:

ISO, AISI, ASTM, GB, EN, DIN

Model Number:

0.1nm-900nm

Document:

Product Brochure PDF

Request A Quote

Earthing Beryllium Copper Alloy C17200 strip Brass Surface

Product Details

Coefficient Of Thermal Expansion:

17.2 μm/m°C

Density:

8.9 G/cm3

Electrical Resistivity:

0.15 μΩm

Elongation:

20 %

Fatigue Strength:

150 MPa

Hardness:

HB 90

Material:

Chromium Zirconium Copper

Melting Point:

1084 °C

Modulus Of Elasticity:

120 GPa

Poisson's Ratio:

0.35

Shear Modulus:

45 GPa

Tensile Strength:

360 MPa

Thermal Conductivity:

170 W/mK

Thickness:

Sheet

Yield Strength:

200 MPa

Payment & Shipping Terms

Minimum Order Quantity

1kg

Price

Packaging Details

Waterproof Paper, Steel Strip Packed and other Standard Export Seaworthy Package, or customized package

Delivery Time

5day

Payment Terms

L/C, T/T , Western Union

Supply Ability

90000ton

RELATED PRODUCTS

+86-17763564398

sales01@shuangheyisteel.com

Contact Now

Product Description

Typical Physical Properties of BrBNT1.9 (Qbe1.9) Copper Beryllium Alloy:
Density (g/cm3): 8.25
Elastic Modulus(Gpa): 130
Electrical Conductivity: 22-28% IACS
Thermal Expansion Coefficient(m/m℃): 17.5x10-6

Thermal Conductivity(25℃): 105W/m℃
Melting Point (°C): 870

echanical And Electrical Properties of BrBNT1.9 (Qbe1.9) Copper Beryllium Strip:

Name	Temper	Thickness (mm)	Tensile Strength	Hardness	Elongation (min)

			MPa	HV	Percent
Qbe1.9	Soft	<0.15	>390	<120	>30%
		0.15~0.25	390~590
		>0.25	390~590
	Hard	<0.15	>590	>160	>3%
		0.15~0.25	590~880
		>0.25	640~930
	After Ageing (Soft)	<0.15	>1080	>330	>2%
		0.15~0.25	1080~1470
		>0.25	1130~1470
	After Ageing (Hard)	<0.15	>1080	>360	>1.5%
		0.15~0.25	1130~1570
		>0.25	1170~1570
